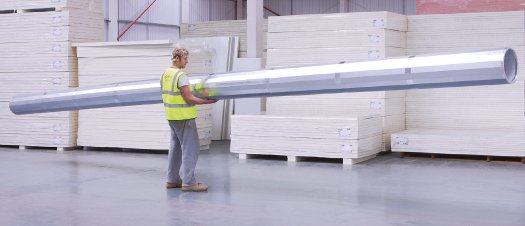

Spiralite Ducting
Spiralite is an innovative and unique ductwork system fabricated using rigid phenolic insulation panels.
It is up to 86% lighter than traditional steel ductwork with insulation, significantly more energy efficient, fully sustainable and quicker to install. It also has significant cost benefits over traditional steel ducting, both on installation and whole-of-life. Installation time is reduced as only one fitter is required and once in operation the Spiralite system produces energy savings of up to 40%.
Spiralite is fabricated in the UK from phenolic panels which are cut and formed into flat oval or circular shapes. These shapes give the product exceptional rigidity, a feature which is enhanced by the continuous vapour proof laminate which seals the inside of the duct to give a strong and extremely air tight duct system.
Spiralite is a complete ductwork system; bends, shoes, tees and indeed any shape that can be made in metal can be made in Spiralite pre-insulated ducting.
Spiralite Ducting Benefits
> Better than Class C air leakage (as rated by BSRIA) up to 2500 Pa.
> Installed cost should never be higher than traditional steel ductwork with insulation.
> Capable of withstanding increased pressure and increased airtightness due to continuous vapour proof inner lining.
> Enhanced energy savings due to airflow efficiencies from rounded shapes, negligible leakage and optimal insulation.
> Easier, quicker and cheaper to transport, store and install – ducting and insulation in a single process.
> Minimal reverberation for less duct noise pollution.
> Safer and easier to work with – no sharp steel edges, no heavy duty cutting or lifting equipment.
> Easier to repair, alter and add additional ducting, branches, etc.
> Enhanced sustainability with greater environmental benefits – reduced carbon footprint (GHG’s) for BREEAM and LEED credits.
> Reduction in initial site labour, management, project and logistic costs – taking labour risk off site.
> Building design advantages due to reduced weights and space requirements.
Spiralite Ducting Applications
> Retail and other fit out due to speed of installation.
> Refurbishment of old buildings due to light weight, efficient shapes and ease of installation.
> Hospitals, clean rooms and other areas where hygiene is key and where mastic and mineral fibre installation is not permitted.
> Leisure facilities, especially swimming pools due to chlorine resistant finish.
> Public access areas where health and safety and speed of installation are key.
For More Information Send email to : info@emdaadps.com
